Led Chaser the use of handiest 4017
Inside the diagram given above, we’ve got drawn an entire comic strip of Led chaser with the handiest 4017 ic.

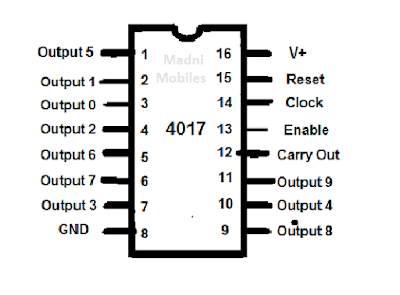

4017IC Pins element
Here is pins element of ic 4017 decade counter i.
Components Required
- LEDs – 11 Any color
- Multicolor Led 5mm
- 470-Ohm Resistor
- 330-Ohm Resistor
- IC 4017
- PCB Or Breadboard
- 9v Battery Or strength deliver
Operating of Circuit
CD4017 or 74HC4017 or HCF4017BE is a 16 pin CMOS decade counter ic with 10 decoded output. Led chaser with the simplest 4017 IC is primarily based in this ic. CD 4017 ic is also known as ‘Johnson 10 level decade counter’. It gives output sign one after the other inside the form of sequence whilst a clock sign from the clock enter (pin 14) given. Whilst 1st clock enter is given, it offers output on pin no 3 (output 0), and as clock 2 is given it offers output 1 on pin no 2 and so forth.
Reset pin (pin 15) is used to reset the ic to zero- it’s miles used to reset the counter to 0. The function of this pin (reset pin) reverts the series back to the initial kingdom (zero states).
On this circuit, three hues LED is used to provide the heartbeat on factor no 14 (clock factor). In case you want to give pulse from another supply like from timer ic or from turn flop circuit you could achieve this without problems. We use 555 ic usually to cause 4017. But in this led chaser circuit with best 4017 tasks we have used tri-coloration-led for triggering.
The video element of those projects
In case you want to observe the operating of this mission please click on here. In this video, we have made the venture for a greater clearly inefficient manner. By using following this video each person could make this project at the house.
LED Chaser Video
Plz watch the video for full detail of constructing step by step
For any question about any kind of circuit, you can contact us freely.
