In this text, we’re going to make an automatic street light circuit. You should want to recognize how road lights circuit routinely on within the night and off in the morning. We need to tell you that no one manually on/off those mild physically.  In this text, we are describing a circuit for an automatic street light or street mild controller venture through using LDR (light dependent resistor).

Here is our new simple Electronics challenge approximately automatic street light management the system. In this mission, we did not use any relay for on/off. We’ve got simply used a TRIAC as a relay to on and rancid the road mild automatically.

Computerized street light CIRCUIT

Capabilities

It’s far An easy And effective idea, which makes use of TRIAC As A switch to replace ON and stale the road lighting fixtures robotically.

It automatically Switches ON lighting when The sunlight goes under (E.G within the night)

It robotically Switches OFF lighting fixtures while sunlight Fall On LDR Sensor Of This project.

AUTOMATIC STREET LIGHT CIRCUIT

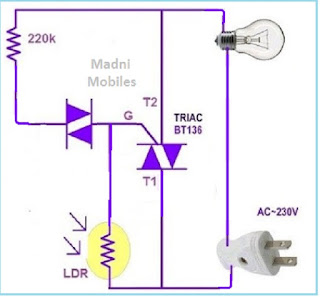

So in this circuit, we’re going to make use of an LDR (light dependent Resistor) as a sensor to feel the light. Within the day time due to light, the resistance of LDR may be very low. So the voltage drop is excessive. This continues the TRIAC (BT136) on-off level. BT136 is a TRIAC that is used to control the primary energy a 110/220V immediately. The bulb will remain OFF.

As night falls the resistance of LDR will increase and it switches on the TRIAC factors M1 and M2. Whilst M1 and M2 of TRIAC joints the present day the bulb activates. ( TRIAC is a part that is used to control the mild directly a hundred and ten/220 volts AC predominant power)

 Trade inside the circuit

You could additionally make it without DIAC (db3). I’m able to work without DB3 perfectly.



https://www.youtube.com/watch?v=yoV_e3m98Y8&t=5s

Components Used on this AUTOMATIC STREET LIGHT CIRCUIT

  • TRIAC  BT134/BT136/BT139
  • Resistor 220k 1/four Watts
  • LDR (mild structured Resistor)

 Caution

The light Sensor transfer works on a hundred and ten/220v AC  without delay and if you are not accustomed to running with mains voltage or do no longer have experience in running with 220v AC Mains Voltage please stay far away from this project while it’s miles linked with essential energy.

Blessings of LDR transfer/wall lighting fixtures/ street lighting

Street lights eat plenty of strength within the towns. Frequently after dawn, the road lighting continues to be on. A far quantity of power is wasted in this manner. The automatic street lights using LDR work consistent with the light. LDR detects the mild. The lighting fixtures are becoming on if the  mild is

Beneath a selected cost.

The system is fantastically touchy. While the LDR is going darkish the road lighting robotically becomes on when the LDR reveals light the wall lights off robotically. Once the street lights are placed in this machine there’s no want to screen them anymore. They function on their own. They’re less expensive and reliable. This system can take care of heavy hundreds as much as 7A if you use BT139 then it could deal with 18A predominant present day.  The system can be modified to the guide mode if wanted.
